COR-KNOT® DEVICE

Faster, stronger, more secure than hand-tying in minimally invasive cardiac procedures.

Table of Contents

Introduction

Our revolutionary COR-KNOT® DEVICE is faster than hand-tying and offers strength, security and reliability in cardiac valve replacement and repair.

Indications for Use

The COR-KNOT® MIS DEVICE and COR-KNOT MINI® DEVICE are indicated for use in the approximation of soft tissue and prosthetic materials, used in conjunction with either A) LSI SOLUTIONS® specified 2-0 Polyester or 2-0 Polypropylene suture and a COR-KNOT® QUICK LOAD® UNIT, or B) 2-0 Polyester, 2-0 Polypropylene, or 3-0 Polypropylene suture and an INTRA-KNOT™ QUICK LOAD® UNIT.

The COR-KNOT® DEVICE used in conjunction with LSI SOLUTIONS® specified 2-0 polyester suture and a COR-KNOT® titanium fastener is indicated for use to fasten and trim suture in general and cardiovascular surgical applications.

Features & Benefits

The COR-KNOT® DEVICE has several key features and benefits that distinguish it as the leading automated suture fastening system.

COR-KNOT® FASTENER

provides a strong, secure and safe alternative to hand-tied knots.

ROTATIONAL KNOB

The COR-KNOT MINI® DEVICE offers a rotational knob, which includes an indicator fin, providing an ergonomic way to control fastener and suture orientation.

DEVICE OPTIONS

The 4mm shaft of the COR-KNOT MINI® and the 5mm shaft of the COR-KNOT® MIS allow the surgeon to perform MIS and open procedures.

COR-KNOT® QUICK LOAD® UNIT

expedites the loading and reloading of a COR-KNOT® FASTENER into the COR-KNOT® DEVICE.

Unparalleled automated reliability

Clinically Proven. Over 901 thousand cardiovascular patients with 15.3 million fasteners over 13 years in 89 countries

Facilitates Minimally Invasive Cardiac Surgery

Ergonomic. Fun and easy to use with tiny shaft, certainly smaller than fingers

Short Learning-Curve making COR-KNOT® quickly and easily learned

Single Squeeze. Automatically crimps and trims; dramatically reduces instrument exchanges

Suture Tail Control. Now you can readily orient suture tails away from leaflets

Tight Approximation. Enables simultaneous suture tensioning and prosthetic compression for scientifically demonstrated secure apposition

Consistent Knot Strength. Delivers over 4kg of holding force every time

Fast. Multiple studies demonstrate an average savings of more than 15 minutes in aortic cross-clamp time

Videos

Watch videos of COR-KNOT® products in use.

Device Anatomy

COR-KNOT® DEVICE

The COR-KNOT® MIS DEVICE is available with a 31cm length, 5mm diameter shaft, and the COR-KNOT MINI® DEVICE is available with a 17cm length, 4mm diameter shaft.

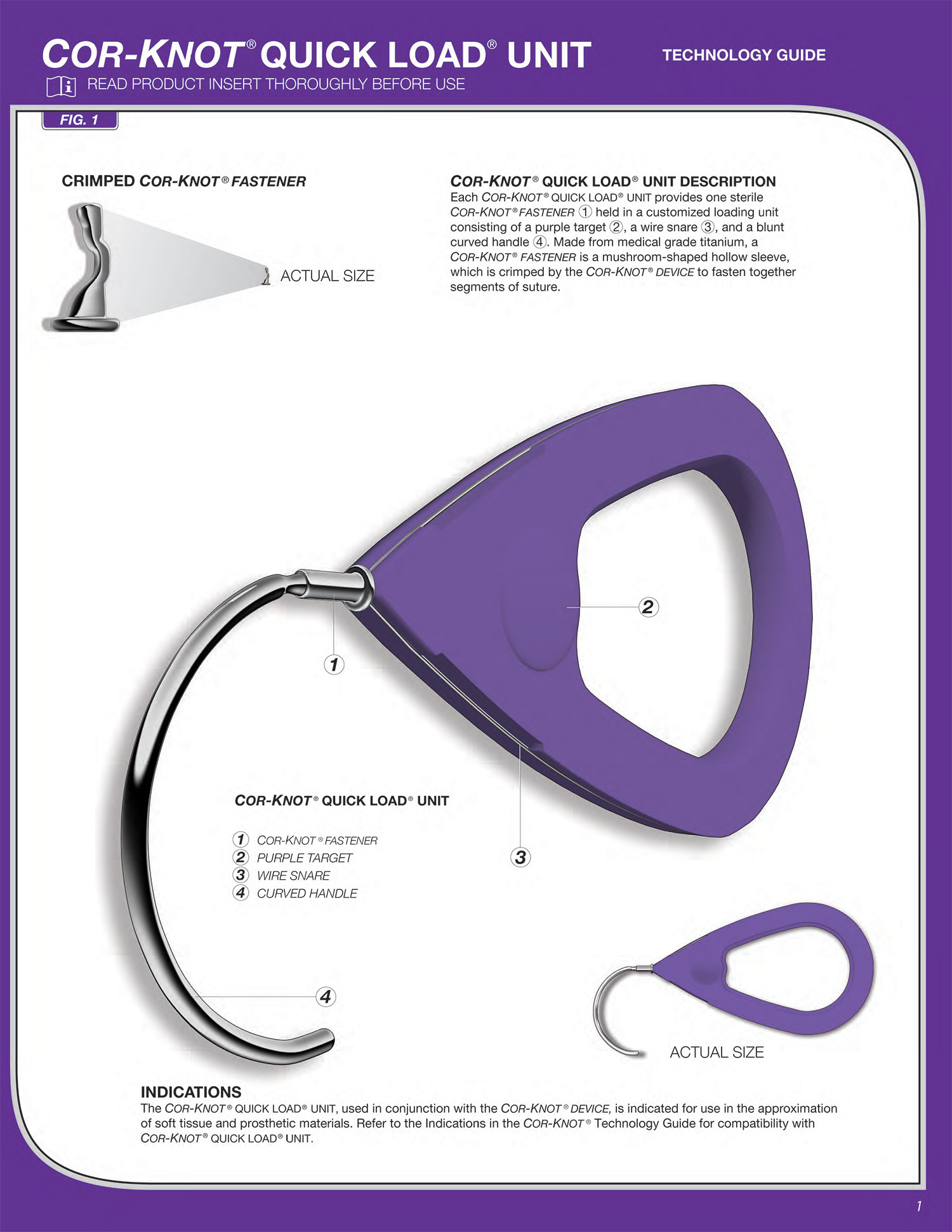

COR-KNOT® QUICK LOAD® UNIT

A COR-KNOT® QUICK LOAD® UNIT is used to load a COR-KNOT® FASTENER into the COR-KNOT® DEVICE. Each COR-KNOT® QUICK LOAD® UNIT provides one sterile COR-KNOT® FASTENER held in a customized loading unit consisting of a purple target, a wire snare and a blunt curved handle.

Made from medical grade titanium, a COR-KNOT® FASTENER is a mushroom-shaped hollow sleeve, which is crimped by the COR-KNOT® DEVICE to fasten together segments of suture.

Ordering

Options and specifications for ordering. Select your region.

COR-KNOT® MIS Device Kit

Box of 6 Kits
2 Devices per Kit

030800

COR-KNOT MINI® Device Kit

Box of 6 Kits
2 Devices per Kit

031300

COR-KNOT® QUICK LOAD® Singles

Box of 12 Singles
1 Fastener per Pouch

030850

COR-KNOT® QUICK LOAD® 6-Pouch

Box of 12 Pouches
6 Fasteners per Pouch

030874

COR-KNOT® MIS Combo Kit

Box of 6 Kits
2 Devices & 12 Fasteners per Kit

031082

COR-KNOT MINI® Combo Kit

Box of 6 Kits
2 Devices & 12 Fasteners per Kit

031350

CK® Suture Green

Box of 12 (1 per Pouch)
Green Braided PTFE Impregnated Polyester
Fiber Nonabsorbable Surgical Suture,U.S.P., 30", KT-3, KT-3, 1/2 Circle K-Point

100002

CK® Suture White

Box of 12 (1 per Pouch)
White Braided PTFE Impregnated Polyester
Fiber Nonabsorbable Surgical Suture,U.S.P., 30", KT-3, KT-3, 1/2 Circle K-Point

100009

COR-KNOT® MIS Device Kit

Box of 6 Kits
2 Devices per Kit

030925

COR-KNOT MINI® Device Kit

Box of 6 Kits
2 Devices per Kit

031400

COR-KNOT® QUICK LOAD® Singles

Box of 12 Singles
1 Fastener per Pouch

030950

COR-KNOT® QUICK LOAD® 6-Pouch

Box of 12 Pouches
6 Fasteners per Pouch

030902

COR-KNOT® MIS Combo Kit

Box of 6 Kits
2 Devices & 12 Fasteners per Kit

031105

COR-KNOT MINI® Combo Kit

Box of 6 Kits
2 Devices & 12 Fasteners per Kit

031450

Resource Center

Downloadable resources for the COR-KNOT® DEVICE. Select your region to view available documents.

COR-KNOT MINI® DEVICE

Brochure

Download

COR-KNOT® MIS DEVICE

U.S. Technology Guide

Download

COR-KNOT MINI® DEVICE

U.S. Technology Guide

Download

Titanium Fastener Device References

Reference

Download

COR-KNOT MINI® DEVICE

COR-KNOT MINI® DEVICE

EU Technology Guide

Download

COR-KNOT® QUICK LOAD® DEVICE

EU Technology Guide

Download

Titanium Fastener Device References

Reference

Download

Supporting References

Automated titanium fastener for surgical aortic valve replacement—preventive role for infective endocarditis?

Amila Kahrovic, Harald Herkner, Philipp Angleitner, Paul Werner, Alfred Kocher, Marek Ehrlich, Dominik Wiedemann, Guenther Laufer, Paul Simon, Martin Andreas

Clinical Outcomes of Patients More than One Year after Minimally Invasive Mitral Valve Repair and Replacement Surgery with sutures secured using Automated Titanium Fasteners.

Roberto Rodriguez, M.D.; Francis P. Sutter, D.O.; Louis E. Samules, M.D.; Daniel Ice, M.D.; Susan Morrissey, Kathleen M. Holzerman, RN; Scott Goldman, M.D.; Lankenau Medical Center, Wynnewood, PA, USA. ISMICS Abstract 2013

Comparison of Strength, Consistency and Speed of Manually-Ties Knots vs. Automated Titanium Fasteners in an Ex-vivo Minimally Invasive Mitral Ring Model Using a New Micro-Transducer Pressure Analysis System.

Candice Y. Lee, M.D.; Peter A. Knight, M.D.; Jude S. Sauer, M.D.; Heather R. Gorea; Angelo J. Martellaro; University of Rochester Medical Center/Strong Memorial Hospital, Rochester, NY, USA, Innovations (Phila). 2014 Mar-Apr;9(2):111-6
